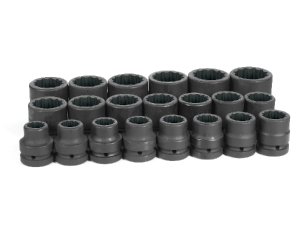

9121  |  1" Drive Standard Length Impact Set

Image shown may not be actual product but represents product or set which includes product.
Set contains 12-Point sizes 3/4" to 2".
Set Contains 21 Pieces  |  1" Dr. 21 Pc. Fractional Set 3/4" to 2" - 12 Point  |  Metal Storage Case  |  Weight: 48.05 lbs.  |  Lifetime Warranty (Individual Parts Only)
ITEM # SIZE SHP PIN O-RING R1 A B C D E
4224R 3/4" I 4520 4510 4110 2.13 1.42 1.18 .51 2.36
4226R 13/16" I 4520 4510 4110 2.13 1.50 1.18 .59 2.36
4228R 7/8" I 4520 4510 4110 2.13 1.54 1.18 .59 2.36
4230R 15/16" I 4520 4510 4110 2.13 1.65 1.18 .71 2.36
4232R 1" I 4520 4510 4110 2.13 1.73 1.18 .71 2.36
4234R 1-1/16" I 4520 4510 4110 2.13 1.81 1.18 .75 2.36
4236R 1-1/8" I 4520 4510 4110 2.13 1.89 1.26 .75 2.44
4238R 1-3/16" I 4520 4510 4110 2.13 1.97 1.26 .83 2.44
4240R 1-1/4" I 4520 4510 4110 2.13 2.05 1.26 .87 2.44
4242R 1-5/16" II 4520 4510 4110 2.13 2.13 1.26 .87 2.44
4244R 1-3/8" III 4520 4510 4110 2.13 2.20 1.38 .87 2.56
4246R 1-7/16" III 4520 4510 4110 2.13 2.28 1.46 .98 2.64
4248R 1-1/2" III 4520 4510 4110 2.13 2.36 1.46 .98 2.64
4250R 1-9/16" III 4520 4510 4110 2.13 2.44 1.57 .98 2.76
4252R 1-5/8" III 4520 4510 4110 2.13 2.50 1.57 1.06 2.76
4254R 1-11/16" III 4520 4510 4110 2.13 2.60 1.73 1.06 2.91
4256R 1-3/4" III 4520 4510 4110 2.13 2.66 1.73 1.06 2.91
4258R 1-13/16" III 4521 4511 4111 2.28 2.76 1.81 1.18 2.99
4260R 1-7/8" III 4521 4511 4111 2.28 2.83 1.81 1.26 2.99
4262R 1-15/16" III 4521 4511 4111 2.28 2.91 1.97 1.26 3.15
4264R 2" III 4521 4512 4112 2.44 2.99 1.97 1.38 3.15
