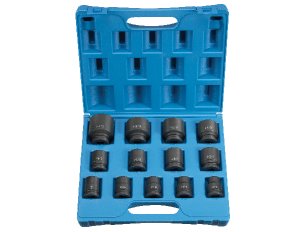

8313  |  3/4" Drive Standard Length Impact Set

Image shown may not be actual product but represents product or set which includes product.

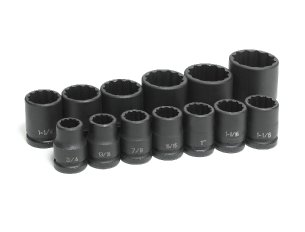

Set contains 12 Point sizes 3/4" to 1-7/8".
Set Contains 13 Pieces  |  3/4" Drive 13 Piece Standard Set - 12 Point  |  Molded Storage Case  |  Weight: 17.28 lbs.  |  Lifetime Warranty (Individual Parts Only)
ITEM # SIZE SHP PIN O-RING R1 A B C D E
3124R 3/4" I 3221 3212 3111 1.73 1.3 0.98 0.51 1.97
3126R 13/16" I 3221 3212 3111 1.73 1.38 0.98 0.59 1.97
3128R 7/8" I 3221 3212 3111 1.73 1.46 0.98 0.59 1.97
3130R 15/16" I 3221 3212 3111 1.73 1.54 0.98 0.71 1.97
3132R 1" I 3221 3212 3111 1.73 1.61 0.98 0.71 1.97
3134R 1-1/16" III 3221 3212 3111 1.73 1.69 1.14 0.75 2.13
3136R 1-1/8" III 3221 3212 3111 1.73 1.75 1.14 0.83 2.13
3140R 1-1/4" III 3221 3212 3111 1.73 1.93 1.22 0.87 2.2
3144R 1-3/8" III 3221 3212 3111 1.73 2.09 1.22 0.87 2.2
3148R 1-1/2" III 3221 3212 3111 1.73 2.24 1.3 0.98 2.28
3152R 1-5/8" III 3221 3212 3111 1.73 2.4 1.3 1.06 2.28
3156R 1-3/4" III 3221 3212 3111 1.73 2.54 1.5 1.06 2.48
3160R 1-7/8" III 3221 3212 3111 1.73 2.68 1.69 1.18 2.68
