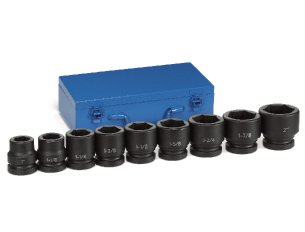

9159  |  1" Drive Standard Length Impact Set

Image shown may not be actual product but represents product or set which includes product.

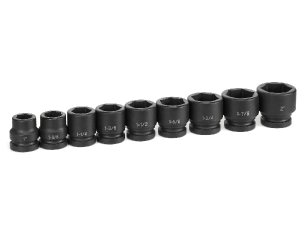

Set contains 6 Point sizes 1" to 2".

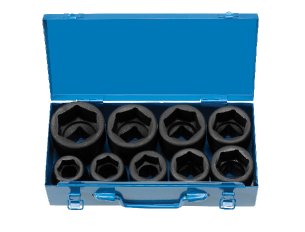

Set Contains 9 Pieces  |  1" Drive 9 Piece Standard "Jumbo" Set  |  Metal Storage Case  |  Weight: 16.91 lbs.  |  Lifetime Warranty (Individual Parts Only)
ITEM # SIZE SHP PIN O-RING R1 A B C D E
4032R 1" I 4520 4510 4110 2.01 1.65 1.1 .71 2.28
4036R 1-1/8" I 4520 4510 4110 2.01 1.81 1.1 .75 2.28
4040R 1-1/4" II 4520 4510 4110 2.01 2.01 1.18 .87 2.36
4044R 1-3/8" III 4520 4510 4110 2.05 2.13 1.26 .87 2.44
4048R 1-1/2" III 4520 4510 4110 2.05 2.28 1.26 .98 2.44
4052R 1-5/8" III 4520 4510 4110 2.05 2.42 1.26 1.06 2.44
4056R 1-3/4" III 4521 4511 4111 2.28 2.6 1.34 1.06 2.52
4060R 1-7/8" III 4521 4511 4111 2.28 2.76 1.42 1.26 2.6
4064R 2" III 4521 4511 4111 2.28 2.91 1.57 1.38 2.76
