9152 | 1" Drive Standard and Deep Length Impact Set
|
Image shown may not be actual product but represents product or set which includes product.
|
|

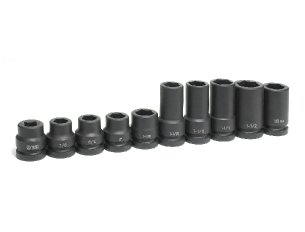

A complete 1" drive set designed for servicing truck wheels. It contains a 13/16" square size for budd wheel inner cap nuts; a 1-1/2" outer budd nut size that has a controlled depth hex end to help prevent contact with the wheel; a 33mm size for 10 hole hub piloted wheels; three (3) deep thin wall sizes; and other regular length impact sockets. 6 Point sizes include: 7/8"; 15/16"; 1" and 1-3/16" standard length; 33mm deep; 1-1/16"; 1-1/8" and 1-1/4" thin;wall deep; 1-1/2" deep budd. 4 Point size includes: 13/16" sq

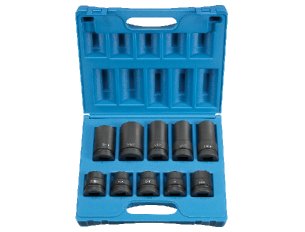

Set Contains 10 Pieces | 1" Drive 10 Piece Wheel Service Set | Molded Storage Case
| Weight: 19.54 lbs. | Lifetime Warranty (Individual Parts Only) |
|
ITEM #
|
SIZE |
SHP |
PIN |
O-RING |
R1 |
A |
B |
C |
D |
E |
|
4028R |
7/8" |
I |
4520 |
4510 |
4110 |
2.01 |
1.54 |
1.10 |
.59 |
2.28 |
|
4030R |
15/16" |
I |
4520 |
4510 |
4110 |
2.01 |
1.57 |
1.10 |
.71 |
2.28 |
|
4032R |
1" |
I |
4520 |
4510 |
4110 |
2.01 |
1.65 |
1.10 |
.71 |
2.28 |
|
4033MD |
33mm |
II |
4520 |
4510 |
4110 |
52 |
53 |
60 |
33 |
90 |
|
4034DT |
1-1/16" |
|
4520 |
4510 |
4110 |
2.01 |
1.67 |
3.07 |
1.69 |
4.25 |
|
4036DT |
1-1/8" |
|
4520 |
4510 |
4110 |
2.01 |
1.69 |
3.07 |
1.69 |
4.25 |
|
4038R |
1-3/16" |
I |
4520 |
4510 |
4110 |
2.01 |
1.89 |
1.18 |
.83 |
2.36 |
|
4040DT |
1-1/4" |
|
4520 |
4510 |
4110 |
2.01 |
1.85 |
3.07 |
1.69 |
4.25 |
|
4048DB |
1-1/2" |
|
4520 |
4511 |
4110 |
2.13 |
2.24 |
2.36 |
.55 |
3.54 |
|
4313S |
13/16" |
|
4520 |
4510 |
4110 |
2.05 |
1.73 |
|
.94 |
2.24 |
|
CA9152 |
|
|
|
|
|
|
|
|
|
|
|
SL02D |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
