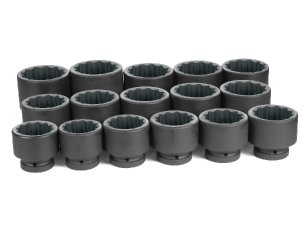

9116  |  1" Drive Standard Length Impact Set

Image shown may not be actual product but represents product or set which includes product.
Set contains 12-Point sizes 2-1/16" to 3".
Set Contains 16 Pieces  |  1" Dr. 16 Pc. Fractional Set 2-1/16" to 3" - 12 Point  |  Metal Storage Case  |  Weight: 99.55 lbs.  |  Lifetime Warranty (Individual Parts Only)
ITEM # SIZE SHP PIN O-RING R1 A B C D E
4266R 2-1/16" III 4521 4512 4112 2.44 3.05 2.13 1.38 3.31
4268R 2-1/8" III 4521 4512 4112 2.44 3.15 2.13 1.38 3.31
4270R 2-3/16" III 4521 4512 4112 2.44 3.21 2.13 1.38 3.31
4272R 2-1/4" III 4521 4512 4112 2.44 3.31 2.13 1.57 3.31
4274R 2-5/16" III 4521 4512 4112 2.44 3.39 2.24 1.57 3.43
4276R 2-3/8" III 4521 4512 4112 2.44 3.43 2.24 1.65 3.43
4278R 2-7/16" III 4521 4512 4112 2.44 3.50 2.24 1.65 3.43
4280R 2-1/2" III 4521 4512 4112 2.44 3.58 2.24 1.65 3.43
4282R 2-9/16" III 4521 4512 4112 2.44 3.66 2.36 1.65 3.54
4284R 2-5/8" III 4521 4512 4112 2.44 3.74 2.44 1.65 3.62
4286R 2-11/16" III 4521 4512 4112 2.44 3.82 2.44 1.65 3.62
4288R 2-3/4" III 4521 4512 4112 2.44 3.94 2.60 1.65 3.78
4290R 2-13/16" III 4521 4512 4112 2.44 4.02 2.60 1.77 3.78
4292R 2-7/8" III 4523 4513 3.39 4.09 2.60 1.77 3.78
4294R 2-15/16" III 4523 4513 3.39 4.13 2.68 1.77 3.86
4296R 3" III 4523 4513 3.39 4.21 2.76 1.89 3.94
