9108D  |  1" Drive Deep Length Impact Set

Image shown may not be actual product but represents product or set which includes product.

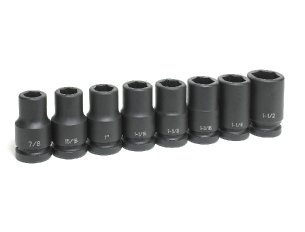

Set contains 6 Point sizes 7/8" to 1-1/2".

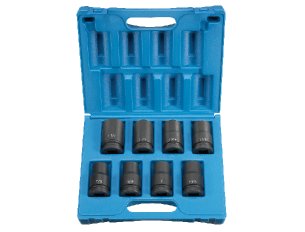

Set Contains 8 Pieces  |  1" Drive 8 Piece Deep Set  |  Molded Storage Case  |  Weight: 18.07 lbs.  |  Lifetime Warranty (Individual Parts Only)
ITEM # SIZE SHP PIN O-RING R1 A B C D E
4028D 7/8" I 4520 4510 4110 2.01 1.54 2.36 .87 3.54
4030D 15/16" I 4520 4510 4110 2.01 1.57 2.36 .94 3.54
4032D 1" I 4520 4510 4110 2.01 1.65 2.36 .98 3.54
4034D 1-1/16" I 4520 4510 4110 2.01 1.73 2.36 1.06 3.54
4036D 1-1/8" I 4520 4510 4110 2.01 1.81 2.36 1.14 3.54
4038D 1-3/16" I 4520 4510 4110 2.01 1.89 2.36 1.18 3.54
4040D 1-1/4" II 4520 4510 4110 2.01 2.01 2.36 1.26 3.54
4048D 1-1/2" III 4520 4510 4110 2.05 2.28 2.44 1.5 3.62
