9108  |  1" Drive Standard Length Impact Set

Image shown may not be actual product but represents product or set which includes product.

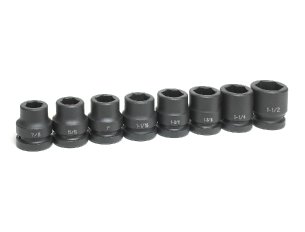

Set contains 6 Point sizes 7/8" to 1-1/2".

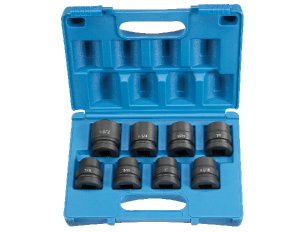

Set Contains 8 Pieces  |  1" Drive 8 Piece Standard Set  |  Molded Storage Case  |  Weight: 11.57 lbs.  |  Lifetime Warranty (Individual Parts Only)
ITEM # SIZE SHP PIN O-RING R1 A B C D E
4028R 7/8" I 4520 4510 4110 2.01 1.54 1.10 .59 2.28
4030R 15/16" I 4520 4510 4110 2.01 1.57 1.10 .71 2.28
4032R 1" I 4520 4510 4110 2.01 1.65 1.10 .71 2.28
4034R 1-1/16" I 4520 4510 4110 2.01 1.73 1.10 .75 2.28
4036R 1-1/8" I 4520 4510 4110 2.01 1.81 1.10 .75 2.28
4038R 1-3/16" I 4520 4510 4110 2.01 1.89 1.18 .83 2.36
4040R 1-1/4" II 4520 4510 4110 2.01 2.01 1.18 .87 2.36
4048R 1-1/2" III 4520 4510 4110 2.05 2.28 1.26 .98 2.44
CA9108
SL05DL
SL05DR
