9011D | 1" Drive Deep Length Impact Set
|

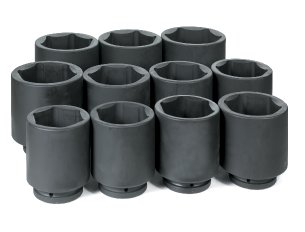

Image shown may not be actual product but represents product or set which includes product.
|
|
Set contains 6 Point sizes 3-1/8" to 4-1/2".
Set Contains 11 Pieces | 1" Dr. 11 Piece Deep Fractional Set 3-1/8" - 4-1/2" | Metal Storage Case
| Weight: 208 lbs. | Lifetime Warranty (Individual Parts Only) |
|
ITEM #
|
SIZE |
SHP |
PIN |
O-RING |
A |
B |
C |
D |
E |
|
4100D |
3-1/8" |
III |
4523 |
4513 |
3.39 |
4.37 |
4.13 |
1.89 |
5.31 |
|
4104D |
3-1/4" |
III |
4523 |
4513 |
3.39 |
4.53 |
4.13 |
1.89 |
5.31 |
|
4108D |
3-3/8" |
III |
4523 |
4513 |
3.39 |
4.69 |
4.33 |
2.05 |
5.51 |
|
4112D |
3-1/2" |
III |
4523 |
4513 |
3.39 |
4.88 |
4.33 |
2.05 |
5.51 |
|
4116D |
3-5/8" |
III |
4523 |
4513 |
3.39 |
5.00 |
4.33 |
2.05 |
5.51 |
|
4120D |
3-3/4" |
III |
4523 |
4513 |
3.39 |
5.16 |
4.25 |
2.05 |
5.51 |
|
4124D |
3-7/8" |
III |
4523 |
4513 |
3.39 |
5.31 |
4.33 |
2.28 |
5.51 |
|
4128D |
4" |
III |
4523 |
4513 |
3.39 |
5.47 |
4.92 |
2.28 |
6.10 |
|
4132D |
4-1/8" |
III |
4524 |
4514 |
3.74 |
5.63 |
4.84 |
2.28 |
6.10 |
|
4136D |
4-1/4" |
III |
4524 |
4514 |
3.74 |
5.79 |
4.92 |
2.36 |
6.10 |
|
4144D |
4-1/2" |
III |
4524 |
4514 |
3.74 |
6.06 |
4.92 |
2.44 |
6.10 |
|
|
|
|
|
|
