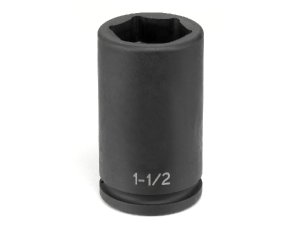

3048DB | 3/4" Drive x 1-1/2" Deep Length Budd Impact
|
Image shown may not be actual product but represents product or set which includes product.
|
|
Special 1-1/2" hex deep heavy duty impact socket designed for outer cap nuts on budd-style truck wheels. The 1-1/2" hex depth is limited to help prevent socket contact with the wheel. The socket is deep style to eliminate contact with the inner cap nut.
3/4" Drive x 1-1/2" Limited Budd | Poly bag with barcode
| Weight: 2.69 lbs. | Lifetime Warranty |
|

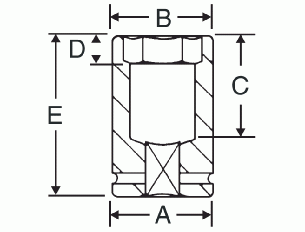

ITEM #
|
SIZE |
PIN |
O-RING |
R1 |
A |
B |
C |
D |
E |
|
3048DB |
1-1/2" |
4520 |
4511 |
3112 |
2.24 |
2.24 |
2.83 |
.55 |
3.82 |
|
|
|
|
|
|
