9712UMD | 1/4" Drive Deep Length Surface Drive Universal Set
|

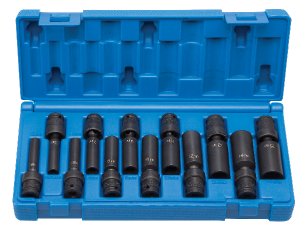

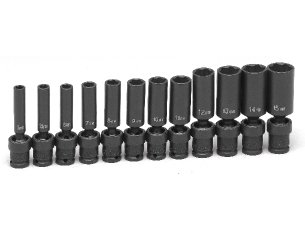

Image shown may not be actual product but represents product or set which includes product.
|
|
Set contains 6 Point Deep Universal sizes 5mm to 15mm.
Set Contains 12 Pieces | 1/4" Surface Drive 12 Pc. Deep Univ Metric Set | Molded Storage Case
| Weight: 2.25 lbs. | Lifetime Warranty (Individual Parts Only) |
|
ITEM #
|
SIZE |
A |
B |
C |
D |
E |
|
905UMD |
5mm |
15 |
8.8 |
18 |
6 |
63 |
|
906UMD |
6mm |
15 |
10 |
20 |
7 |
63 |
|
907UMD |
7mm |
15 |
11.5 |
20 |
7 |
63 |
|
908UMD |
8mm |
15 |
12.5 |
30 |
9 |
63 |
|
909UMD |
9mm |
15 |
14 |
30 |
9 |
63 |
|
910UMD |
10mm |
15 |
15 |
30 |
9 |
63 |
|
911UMD |
11mm |
15 |
16.5 |
30 |
9 |
63 |
|
912UMD |
12mm |
16 |
16.8 |
30 |
9 |
68 |
|
913UMD |
13mm |
16 |
18.8 |
30 |
9 |
68 |
|
914UMD |
14mm |
16 |
19.8 |
30 |
9 |
68 |
|
915UMD |
15mm |
16 |
20.8 |
30 |
9 |
68 |
|
955UMD |
5.5mm |
15 |
9.5 |
20 |
6 |
63 |
|
CA9712UMD |
|
|
|
|
|
|
|
SL01D |
|
|
|
|
|
|
|
|
|
|
|
|
