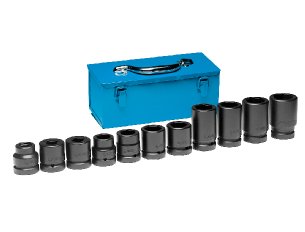

9157  |  1" Drive Standard and Deep Length Impact Set

Image shown may not be actual product but represents product or set which includes product.

An eleven (11) piece metric impact socket set for servicing tires and wheels on a complete range of imported trucks with metric wheel fasteners. 6 Point sizes include: 27mm; 30mm; 32mm and 33mm standard length; 35mm; 36mm; 38mm and 41mm deep length. 4 Point sizes include: 17mm; 20mm and 21mm square.
Set Contains 11 Pieces  |  1" Drive 11 Piece Metric Truck Set  |  Metal Storage Case  |  Weight: 20.86 lbs.  |  Lifetime Warranty (Individual Parts Only)
ITEM # SIZE SHP PIN O-RING R1 A B C D E
4027M 27mm I 4520 4510 4110 51 44 28 19 58
4030M 30mm I 4520 4510 4110 51 48 30 21 60
4032M 32mm II 4520 4510 4110 51 51 30 22 60
4033M 33mm III 4520 4510 4110 52 53 32 22 62
4035MD 35mm III 4520 4510 4110 52 54 60 35 90
4036MD 36mm III 4520 4510 4110 52 56 60 36 90
4038MD 38mm III 4520 4510 4110 52 58 62 38 92
4041MD 41mm III 4520 4510 4110 52 60 62 38 92
4317S 17mm 4520 4510 4110 52 40 24 57
4320S 20mm 4520 4510 4110 52 40 24 57
4321S 21mm 4520 4510 4110 52 40 24 57
