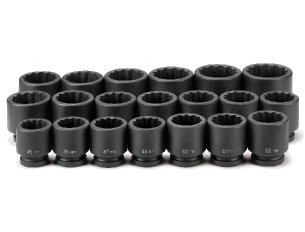

9120M  |  1" Drive Standard Length Impact Set

Image shown may not be actual product but represents product or set which includes product.

Set contains 12-Point sizes 45mm to 75mm.
Set Contains 20 Pieces  |  1" Dr. 20 Pc. Metric Set 45mm to 75mm - 12 Point  |  Metal Storage Case  |  Weight: 96 lbs.  |  Lifetime Warranty (Individual Parts Only)
ITEM # SIZE SHP PIN O-RING R1 A B C D E
4145M 45mm III 4520 4510 4110 54 68 44 27 74
4146M 46mm III 4521 4511 4111 58 70 46 30 76
4147M 47mm III 4521 4511 4111 58 71.5 46 32 76
4148M 48mm III 4521 4511 4111 58 72.5 46 32 76
4150M 50mm III 4521 4512 4112 62 75 50 35 80
4151M 51mm III 4521 4512 4112 62 76 50 35 80
4152M 52mm III 4521 4512 4112 62 77 54 35 84
4153M 53mm III 4521 4512 4112 62 78 54 35 84
4154M 54mm III 4521 4512 4112 62 80 54 35 84
4155M 55mm III 4521 4512 4112 62 81 54 35 84
4156M 56mm III 4521 4512 4112 62 82 54 40 84
4157M 57mm III 4521 4512 4112 62 84 54 40 84
4158M 58mm III 4521 4512 4112 62 85 57 40 87
4160M 60mm III 4521 4512 4112 62 87 57 42 87
4162M 62mm III 4521 4512 4112 62 89 57 42 87
4163M 63mm III 4521 4512 4112 62 90 57 42 87
4165M 65mm III 4521 4512 4112 62 93 60 42 90
4167M 67mm III 4521 4512 4112 62 96 62 42 92
4170M 70mm III 4521 4512 4112 62 100 66 42 96
4175M 75mm III 4523 4513 86 106 68 45 98
