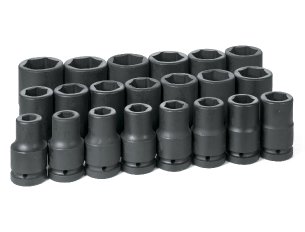

9021D  |  1" Drive Deep Length Impact Set

Image shown may not be actual product but represents product or set which includes product.
Set contains 6 Point sizes 3/4" to 2".
Set Contains 21 Pieces  |  1" Dr. 21 Piece Deep Fractional Set 3/4" to 2"  |  Metal Storage Case  |  Weight: 55.29 lbs.  |  Lifetime Warranty (Individual Parts Only)
ITEM # SIZE SHP PIN O-RING R1 A B C D E
4024D 3/4" I 4520 4510 4110 2.01 1.42 2.36 .75 3.54
4026D 13/16" I 4520 4510 4110 2.01 1.50 2.36 .87 3.54
4028D 7/8" I 4520 4510 4110 2.01 1.54 2.36 .87 3.54
4030D 15/16" I 4520 4510 4110 2.01 1.57 2.36 .94 3.54
4032D 1" I 4520 4510 4110 2.01 1.65 2.36 .98 3.54
4034D 1-1/16" I 4520 4510 4110 2.01 1.73 2.36 1.06 3.54
4036D 1-1/8" I 4520 4510 4110 2.01 1.81 2.36 1.14 3.54
4038D 1-3/16" I 4520 4510 4110 2.01 1.89 2.36 1.18 3.54
4040D 1-1/4" II 4520 4510 4110 2.01 2.01 2.36 1.26 3.54
4042D 1-5/16" III 4520 4510 4110 2.05 2.09 2.36 1.34 3.54
4044D 1-3/8" III 4520 4510 4110 2.05 2.13 2.36 1.38 3.54
4046D 1-7/16" III 4520 4510 4110 2.05 2.20 2.36 1.46 3.54
4048D 1-1/2" III 4520 4510 4110 2.05 2.28 2.44 1.50 3.62
4050D 1-9/16" III 4520 4510 4110 2.05 2.36 2.44 1.50 3.62
4052D 1-5/8" III 4520 4510 4110 2.05 2.42 2.44 1.50 3.62
4054D 1-11/16" III 4520 4510 4110 2.05 2.56 2.44 1.50 3.62
4056D 1-3/4" III 4521 4511 4111 2.28 2.60 2.44 1.50 3.62
4058D 1-13/16" III 4521 4511 4111 2.28 2.68 2.44 1.50 3.62
4060D 1-7/8" III 4521 4511 4111 2.28 2.76 2.44 1.50 3.62
4062D 1-15/16" III 4521 4511 4111 2.28 2.83 2.44 1.50 3.62
4064D 2" III 4521 4511 4111 2.28 2.91 2.56 1.57 3.74
