« Back to previous page.

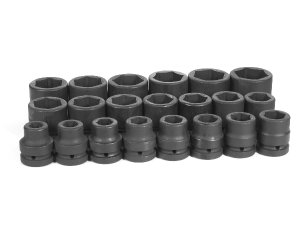

9021  |  1" Drive Standard Length Impact Set

Image shown may not be actual product but represents product or set which includes product.
Set contains 6 Point sizes 3/4" to 2".
Set Contains 21 Pieces  |  1" Dr. 21 Piece Fractional Set 3/4" to 2"  |  Metal Storage Case  |  Weight: 40.4 lbs.  |  Lifetime Warranty (Individual Parts Only)
ITEM # SIZE SHP PIN O-RING R1 A B C D E
4024R 3/4" I 4520 4510 4110 2.01 1.42 1.10 .51 2.28
4026R 13/16" I 4520 4510 4110 2.01 1.50 1.10 .59 2.28
4028R 7/8" I 4520 4510 4110 2.01 1.54 1.10 .59 2.28
4030R 15/16" I 4520 4510 4110 2.01 1.57 1.10 .71 2.28
4032R 1" I 4520 4510 4110 2.01 1.65 1.10 .71 2.28
4034R 1-1/16" I 4520 4510 4110 2.01 1.73 1.10 .75 2.28
4036R 1-1/8" I 4520 4510 4110 2.01 1.81 1.10 .75 2.28
4038R 1-3/16" I 4520 4510 4110 2.01 1.89 1.18 .83 2.36
4040R 1-1/4" II 4520 4510 4110 2.01 2.01 1.18 .87 2.36
4042R 1-5/16" III 4520 4510 4110 2.05 2.09 1.26 .87 2.44
4044R 1-3/8" III 4520 4510 4110 2.05 2.13 1.26 .87 2.44
4046R 1-7/16" III 4520 4510 4110 2.05 2.20 1.26 .98 2.44
4048R 1-1/2" III 4520 4510 4110 2.05 2.28 1.26 .98 2.44
4050R 1-9/16" III 4520 4510 4110 2.05 2.36 1.26 .98 2.44
4052R 1-5/8" III 4520 4510 4110 2.05 2.42 1.26 1.06 2.44
4054R 1-11/16" III 4520 4510 4110 2.05 2.56 1.34 1.06 2.52
4056R 1-3/4" III 4521 4511 4111 2.28 2.60 1.34 1.06 2.52
4058R 1-13/16" III 4521 4511 4111 2.28 2.68 1.34 1.18 2.52
4060R 1-7/8" III 4521 4511 4111 2.28 2.76 1.42 1.26 2.60
4062R 1-15/16" III 4521 4511 4111 2.28 2.83 1.50 1.26 2.68
4064R 2" III 4521 4511 4111 2.28 2.91 1.57 1.38 2.76
