« Back to previous page.

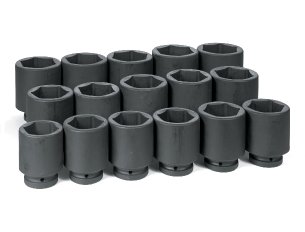

9016D  |  1" Drive Deep Length Impact Set

Image shown may not be actual product but represents product or set which includes product.
Set contains 6 Point sizes 2-1/16" to 3".
Set Contains 16 Pieces  |  1" Dr. 16 Piece Deep Fractional Set 2-1/16" - 3"  |  Metal Storage Case  |  Weight: 136 lbs.  |  Lifetime Warranty (Individual Parts Only)
ITEM # SIZE SHP PIN O-RING R1 A B C D E
4066D 2-1/16" III 4521 4511 4111 2.28 2.95 2.56 1.57 3.74
4068D 2-1/8" III 4521 4511 4111 2.28 3.07 2.76 1.57 3.94
4070D 2-3/16" III 4521 4512 4112 2.44 3.15 2.76 1.57 3.94
4072D 2-1/4" III 4521 4512 4112 2.44 3.31 2.76 1.57 3.94
4074D 2-5/16" III 4521 4512 4112 2.44 3.39 2.95 1.57 4.13
4076D 2-3/8" III 4521 4512 4112 2.44 3.43 2.95 1.65 4.13
4078D 2-7/16" III 4521 4512 4112 2.44 3.50 3.15 1.65 4.33
4080D 2-1/2" III 4521 4512 4112 2.44 3.58 3.15 1.65 4.33
4082D 2-9/16" III 4521 4512 4112 2.44 3.66 3.74 1.65 4.92
4084D 2-5/8" III 4521 4512 4112 2.44 3.74 3.74 1.65 4.92
4086D 2-11/16" III 4521 4512 4112 2.44 3.82 3.74 1.65 4.92
4088D 2-3/4" III 4521 4512 4112 2.44 3.94 3.74 1.65 4.92
4090D 2-13/16" III 4521 4512 4112 2.44 4.02 3.74 1.77 4.92
4092D 2-7/8" III 4523 4513 3.39 4.09 3.74 1.77 4.92
4094D 2-15/16" III 4523 4513 3.39 4.13 4.13 1.77 5.31
4096D 3" III 4523 4513 3.39 4.21 4.06 1.89 5.31
