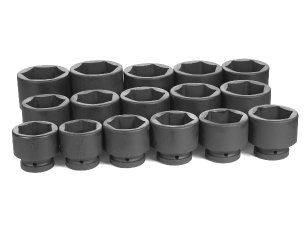

9016  |  1" Drive Standard Length Impact Set

Image shown may not be actual product but represents product or set which includes product.
Set contains 6 Point sizes 2-1/16" to 3".
Set Contains 16 Pieces  |  1" Dr. 16 Piece Fractional Set 2-1/16" - 3"  |  Metal Storage Case  |  Weight: 96.44 lbs.  |  Lifetime Warranty (Individual Parts Only)
ITEM # SIZE SHP PIN O-RING R1 A B C D E
4066R 2-1/16" III 4521 4511 4111 2.28 2.95 1.57 1.38 2.76
4068R 2-1/8" III 4521 4511 4111 2.28 3.07 1.57 1.38 2.76
4070R 2-3/16" III 4521 4512 4112 2.44 3.15 1.65 1.38 2.83
4072R 2-1/4" III 4521 4512 4112 2.44 3.31 1.77 1.57 2.95
4074R 2-5/16" III 4521 4512 4112 2.44 3.39 1.77 1.57 2.95
4076R 2-3/8" III 4521 4512 4112 2.44 3.43 1.89 1.65 3.07
4078R 2-7/16" III 4521 4512 4112 2.44 3.50 1.89 1.65 3.07
4080R 2-1/2" III 4521 4512 4112 2.44 3.58 1.97 1.65 3.15
4082R 2-9/16" III 4521 4512 4112 2.44 3.66 1.97 1.65 3.15
4084R 2-5/8" III 4521 4512 4112 2.44 3.74 2.05 1.65 3.23
4086R 2-11/16" III 4521 4512 4112 2.44 3.82 2.05 1.65 3.23
4088R 2-3/4" III 4521 4512 4112 2.44 3.94 2.60 1.65 3.78
4090R 2-13/16" III 4521 4512 4112 2.44 4.02 2.60 1.77 3.78
4092R 2-7/8" III 4523 4513 3.39 4.09 2.60 1.77 3.78
4094R 2-15/16" III 4523 4513 3.39 4.13 2.68 1.77 3.86
4096R 3" III 4523 4513 3.39 4.21 2.68 1.89 3.94
