« Back to previous page.

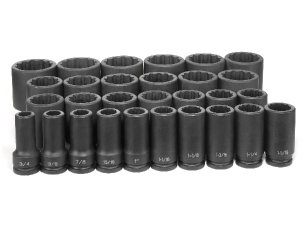

8129D  |  3/4" Drive Deep Length Impact Set

Image shown may not be actual product but represents product or set which includes product.
Set contains 12 Point sizes 3/4" to 2-1/2".
Set Contains 29 Pieces  |  3/4" Dr. 29 Piece Deep Fract. Master Set - 12 Point  |  Metal Storage Case  |  Weight: 100.4 lbs.  |  Lifetime Warranty (Individual Parts Only)
ITEM # SIZE SHP PIN O-RING R1 A B C D E
3124D 3/4" I 3221 3212 3111 1.73 1.30 2.76 .75 3.74
3126D 13/16" I 3221 3212 3111 1.73 1.38 2.76 .87 3.74
3128D 7/8" I 3221 3212 3111 1.73 1.46 2.76 .87 3.74
3130D 15/16" I 3221 3212 3111 1.73 1.54 2.76 .94 3.74
3132D 1" I 3221 3212 3111 1.73 1.61 2.76 .98 3.74
3134D 1-1/16" III 3221 3212 3111 1.73 1.69 2.76 1.06 3.74
3136D 1-1/8" III 3221 3212 3111 1.73 1.75 2.76 1.14 3.74
3138D 1-3/16" III 3221 3212 3111 1.73 1.85 2.76 1.18 3.74
3140D 1-1/4" III 3221 3212 3111 1.73 1.93 2.76 1.26 3.74
3142D 1-5/16" III 3221 3212 3111 1.73 2.01 2.76 1.34 3.74
3144D 1-3/8" III 3221 3212 3111 1.73 2.09 2.76 1.38 3.74
3146D 1-7/16" III 3221 3212 3111 1.73 2.17 2.76 1.46 3.74
3148D 1-1/2" III 3221 3212 3111 1.73 2.24 2.76 1.50 3.74
3150D 1-9/16" III 3221 3212 3111 1.73 2.32 2.76 1.50 3.74
3152D 1-5/8" III 3221 3212 3111 1.73 2.40 2.76 1.50 3.74
3154D 1-11/16" III 3221 3212 3111 1.73 2.50 2.76 1.50 3.74
3156D 1-3/4" III 3221 3212 3111 1.73 2.54 2.76 1.50 3.74
3158D 1-13/16" III 3221 3212 3111 1.73 2.64 2.95 1.50 3.94
3160D 1-7/8" III 3221 3212 3111 1.73 2.68 2.95 1.50 3.94
3162D 1-15/16" III 3221 3212 3111 1.73 2.76 2.95 1.50 3.94
3164D 2" III 4520 4511 3112 2.13 2.83 2.95 1.57 3.94
3166D 2-1/16" III 4520 4511 3112 2.13 2.91 2.95 1.57 3.94
3168D 2-1/8" III 4520 4511 3112 2.13 3.03 2.95 1.57 3.94
3170D 2-3/16" III 4520 4511 3112 2.13 3.09 3.15 1.57 4.13
3172D 2-1/4" III 4520 4511 3112 2.13 3.15 3.15 1.57 4.13
3174D 2-5/16" III 4520 4511 3112 2.13 3.23 3.15 1.57 4.13
3176D 2-3/8" III 4520 4511 3112 2.13 3.31 3.15 1.65 4.13
3178D 2-7/16" III 4520 4511 3112 2.13 3.39 3.15 1.65 4.13
3180D 2-1/2" III 4520 4511 3112 2.13 3.46 3.15 1.65 4.13
