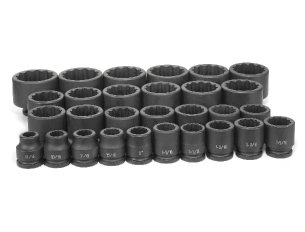

8129  |  3/4" Drive Standard Length Impact Set

Image shown may not be actual product but represents product or set which includes product.

Set contains 12 Point sizes 3/4" to 2-1/2".
Set Contains 29 Pieces  |  3/4" Dr. 29 Piece Fract. Master Set - 12 Point  |  Metal Storage Case  |  Weight: 63.9 lbs.  |  Lifetime Warranty (Individual Parts Only)
ITEM # SIZE SHP PIN O-RING R1 A B C D E
3124R 3/4" I 3221 3212 3111 1.73 1.30 .98 .51 1.97
3126R 13/16" I 3221 3212 3111 1.73 1.38 .98 .59 1.97
3128R 7/8" I 3221 3212 3111 1.73 1.46 .98 .59 1.97
3130R 15/16" I 3221 3212 3111 1.73 1.54 .98 .71 1.97
3132R 1" I 3221 3212 3111 1.73 1.61 .98 .71 1.97
3134R 1-1/16" III 3221 3212 3111 1.73 1.69 1.14 .75 2.13
3136R 1-1/8" III 3221 3212 3111 1.73 1.75 1.14 .83 2.13
3138R 1-3/16" III 3221 3212 3111 1.73 1.85 1.14 .83 2.13
3140R 1-1/4" III 3221 3212 3111 1.73 1.93 1.22 .87 2.20
3142R 1-5/16" III 3221 3212 3111 1.73 2.01 1.22 .87 2.20
3144R 1-3/8" III 3221 3212 3111 1.73 2.09 1.22 .87 2.20
3146R 1-7/16" III 3221 3212 3111 1.73 2.17 1.22 .98 2.20
3148R 1-1/2" III 3221 3212 3111 1.73 2.24 1.30 .98 2.28
3150R 1-9/16" III 3221 3212 3111 1.73 2.32 1.30 .98 2.28
3152R 1-5/8" III 3221 3212 3111 1.73 2.40 1.30 1.06 2.28
3154R 1-11/16" III 3221 3212 3111 1.73 2.50 1.50 1.06 2.48
3156R 1-3/4" III 3221 3212 3111 1.73 2.54 1.50 1.06 2.48
3158R 1-13/16" III 3221 3212 3111 1.73 2.64 1.50 1.18 2.48
3160R 1-7/8" III 3221 3212 3111 1.73 2.68 1.69 1.18 2.68
3162R 1-15/16" III 3221 3212 3111 1.73 2.76 1.77 1.18 2.76
3164R 2" III 4520 4511 3112 2.13 2.83 1.85 1.26 2.83
3166R 2-1/16" III 4520 4511 3112 2.13 2.91 1.85 1.26 2.83
3168R 2-1/8" III 4520 4511 3112 2.13 3.03 1.85 1.26 2.83
3170R 2-3/16" III 4520 4511 3112 2.13 3.09 1.93 1.38 2.91
3172R 2-1/4" III 4520 4511 3112 2.13 3.15 1.93 1.38 2.91
3174R 2-5/16" III 4520 4511 3112 2.13 3.23 1.97 1.46 2.95
3176R 2-3/8" III 4520 4511 3112 2.13 3.31 1.97 1.46 2.95
3178R 2-7/16" III 4520 4511 3112 2.13 3.39 1.97 1.46 2.95
3180R 2-1/2" III 4520 4511 3112 2.13 3.46 1.97 1.46 2.95
