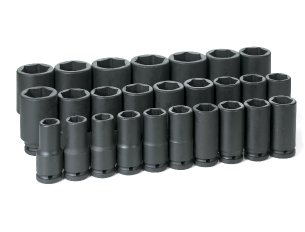

8026MD  |  3/4" Drive Deep Length Impact Set

Image shown may not be actual product but represents product or set which includes product.
Set contains 6 Point sizes 19mm to 50mm.
Set Contains 26 Pieces  |  3/4" Dr. 26 Piece Deep Metric Master Set 19-50mm  |  Metal Storage Case  |  Weight: 48.16 lbs.  |  Lifetime Warranty (Individual Parts Only)
ITEM # SIZE SHP PIN O-RING R1 A B C D E
3019MD 19mm I 3220 3210 3110 38 30 60 19 85
3020MD 20mm I 3220 3210 3110 38 31 60 20 85
3021MD 21mm I 3220 3210 3110 38 32 60 21 85
3022MD 22mm I 3220 3210 3110 38 34 60 22 85
3023MD 23mm I 3220 3210 3110 38 35 60 23 85
3024MD 24mm I 3220 3210 3110 38 36 60 24 85
3025MD 25mm II 3220 3210 3110 38 38 60 25 85
3026MD 26mm III 3220 3210 3110 38 40 60 26 85
3027MD 27mm III 3220 3210 3110 38 40 60 27 85
3028MD 28mm II 3221 3211 3111 42 42 60 28 85
3029MD 29mm II 3221 3211 3111 42 42 60 29 85
3030MD 30mm II 3221 3212 3111 44 44 60 30 85
3031MD 31mm II 3221 3212 3111 44 44 60 31 85
3032MD 32mm III 3221 3212 3111 44 49 60 32 85
3033MD 33mm III 3221 3212 3111 44 50 60 33 85
3034MD 34mm III 3221 3212 3111 44 50 60 34 85
3035MD 35mm III 3221 3212 3111 44 50 60 35 85
3036MD 36mm III 3221 3212 3111 44 51 60 36 85
3038MD 38mm III 3221 3212 3111 44 57 70 38 95
3040MD 40mm III 3221 3212 3111 44 58 70 38 95
3041MD 41mm III 3221 3212 3111 44 58 70 38 95
3042MD 42mm III 3221 3212 3111 44 62 70 38 95
3043MD 43mm III 3221 3212 3111 44 63 70 38 95
3044MD 44mm III 3221 3212 3111 44 65 70 38 95
3046MD 46mm III 3221 3212 3111 44 67 70 38 95
3050MD 50mm III 4520 4511 3112 54 71 70 38 95
