3788D | 3/4" Drive x 2-3/4" Deep Length Pinion Nut Impact
|

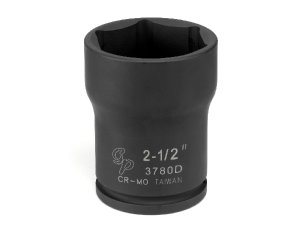

Image shown may not be actual product but represents product or set which includes product.
|
|
Extra thin wall deep length impact sockets for removing/installing transmission and differential and yoke locknuts* on a wide variety of trucks. Because of the Extra thin wall design; larger drive impact tools with reducing adapters should not be used with these impact sockets. *Use caution and follow the manufacturer's recommendations when servicing these parts.
3/4" Drive x 2-3/4" Deep Truck Pinion Locknut | Poly bag with barcode
| Weight: 4.57 lbs. | Lifetime Warranty |
|

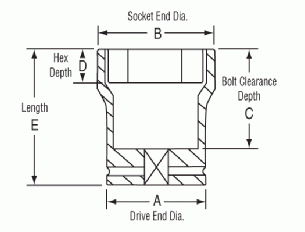

ITEM #
|
SIZE |
PIN |
O-RING |
R1 |
A |
B |
C |
D |
E |
|
3788D |
2-3/4" |
NA |
NA |
NA |
3.07 |
3.60 |
3.00 |
1.02 |
4.10 |
|
|
|
|
|
|
