1202SD | 3/8" Drive Semi-Deep Length Impact Set
|
Image shown may not be actual product but represents product or set which includes product.
|
|

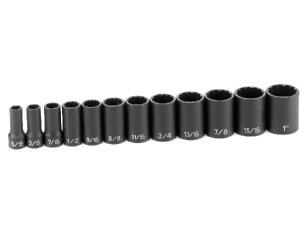

Semi-Deep sockets for use in applications where a standard socket is too short and a deep socket is too long. A new re-designed chamfered drive means easy attachment to power tool anvils while also protecting them from damage. The sockets internal large bore and external neck down design on smaller sizes allows for maximum bolt clearance. Set contains 12 Point sizes 5/16" to 1".

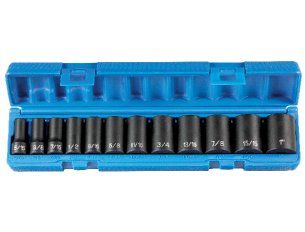

Set Contains 12 Pieces | 3/8" Drive 12 Piece Semi-Deep Set - 12 Point | Molded Storage Case
| Weight: 3.02 lbs. | Lifetime Warranty (Individual Parts Only) |
|
ITEM #
|
SIZE |
SHP |
A |
B |
C |
D |
E |
|
1110SD |
5/16" |
I |
.69 |
.50 |
1.14 |
.25 |
1.63 |
|
1112SD |
3/8" |
I |
.69 |
.56 |
1.14 |
.28 |
1.63 |
|
1114SD |
7/16" |
I |
.75 |
.66 |
1.14 |
.34 |
1.63 |
|
1116SD |
1/2" |
II |
.75 |
.75 |
1.14 |
.41 |
1.63 |
|
1118SD |
9/16" |
II |
.81 |
.81 |
1.14 |
.41 |
1.63 |
|
1120SD |
5/8" |
II |
.91 |
.91 |
1.14 |
.41 |
1.63 |
|
1122SD |
11/16" |
II |
.97 |
.97 |
1.14 |
.44 |
1.63 |
|
1124SD |
3/4" |
II |
1.05 |
1.05 |
1.14 |
.46 |
1.63 |
|
1126SD |
13/16" |
II |
1.13 |
1.13 |
1.14 |
.50 |
1.63 |
|
1128SD |
7/8" |
II |
1.19 |
1.19 |
1.14 |
.53 |
1.63 |
|
1130SD |
15/16" |
II |
1.28 |
1.28 |
1.14 |
.53 |
1.63 |
|
1132SD |
1" |
II |
1.34 |
1.34 |
1.14 |
.56 |
1.63 |
|
CA1202SD |
|
|
|
|
|
|
|
|
SL01D |
|
|
|
|
|
|
|
|
|
|
|
|
|
